Stainless Steel Cut to length machine

Dec. 19, 2018

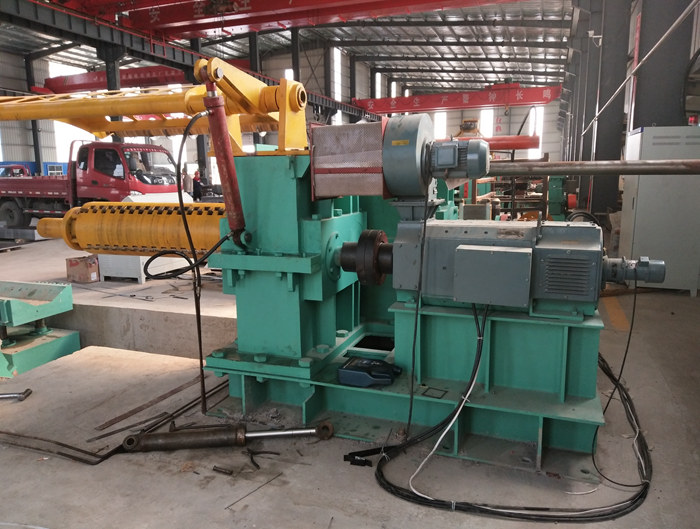

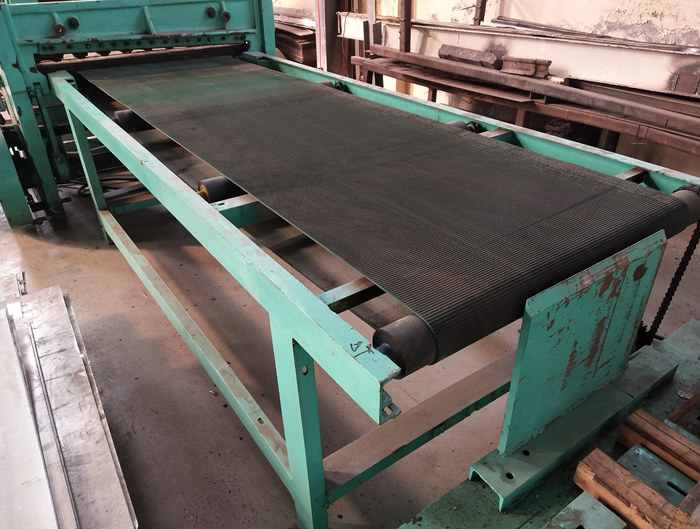

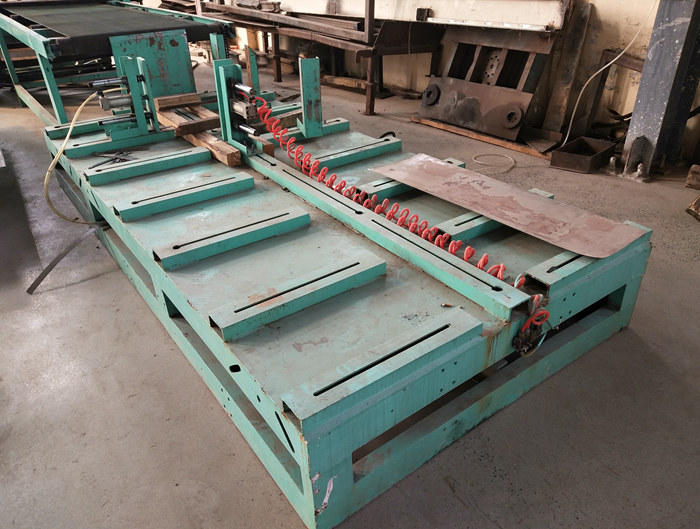

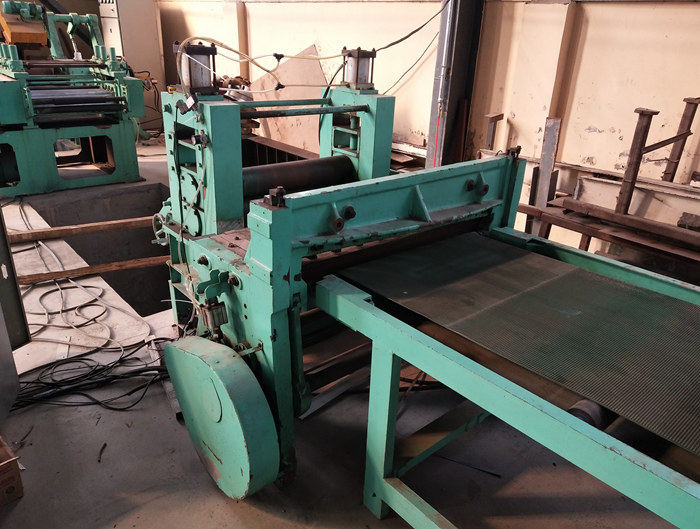

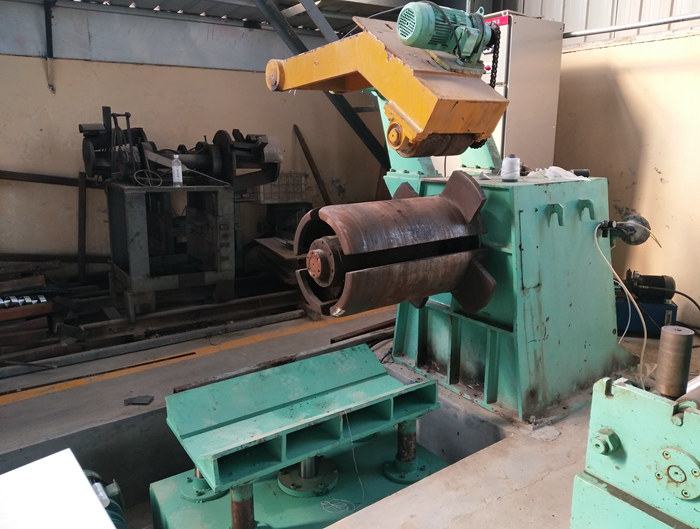

Stainless Steel Cut to length line  including: uncoiling, pre-leveling, leveling,cutting and stacking work.The CTL line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials.

Stainless Steel Cut to length machine

Stainless Steel Cut to length machine

Stainless Steel Cut to length machine

Stainless Steel Cut to length machine

Stainless Steel Cut to length machine

1.Steel coil grade:≤360N/mm2,pre-painted steel or galvanized steel

2.Coil thickness:0.5--3mm

3.Coil width:500mm---2000mm

4.coil outer diameter: dia1000--- dia1800mm

5.Coil inner diameter:dia460mm--dia520mm

6.Cutting length:1000mm---6000mm

7.Cutting length tolerance:+/-0.5mm  according to the length 2000mm

8.Cutting diagonal tolerance:+/-1mm according to the length 2000mm

9.Leveling accuracy:≤±1.0mm/m2

10.Line speed:0--110m/min

11.Cutting speed:25 --30pcs/min according to 2m long sheet

12.Whole Line weight:50t
