CZ Purlin Roll Forming Machine | runs stably, high precision‎

Nov. 21, 2018

CZ Purlin Roll Forming Machine | runs stably, high precision‎

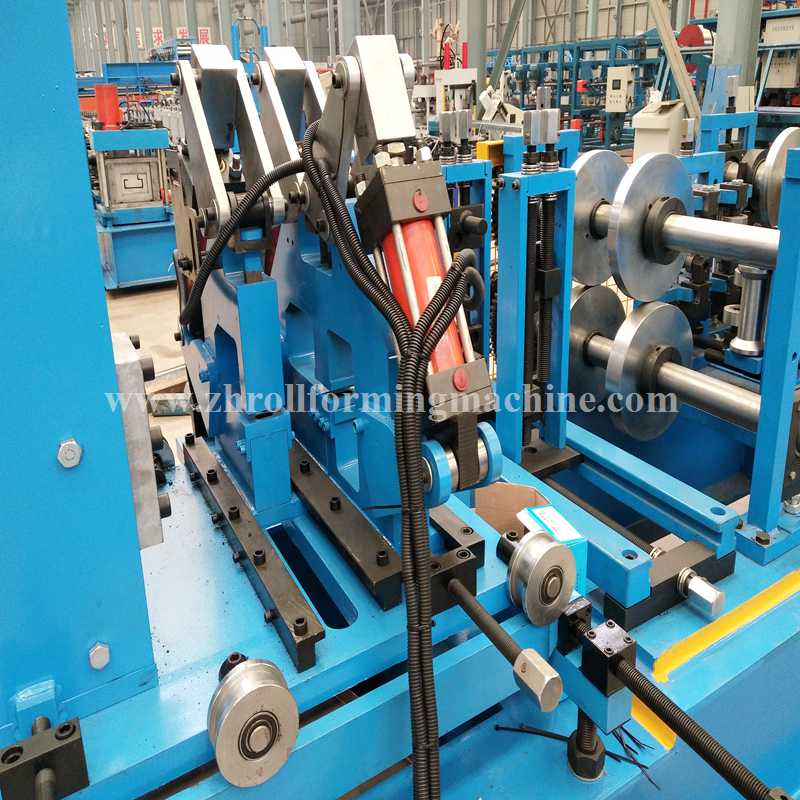

The C & Z purlin roll forming Machine is making many types of purlin in one machine only you can change a roller. The whole Manufacturing Process is mainly consists of decoiler, coil sheet pulling down tools, roll forming machine, punching Press, cutting press, hydraulic press, and plc control Panel.

The C & Z purlines formed by this roll forming machine have outstanding anti-bending property and are easy to install. They are widely used as the supporter wall in factory, warehouse

D coiler 5 ton cap.

Punching press 20 tone 2 nos.

Entry Gate with

Roll Forming Line with 14 station , 7 Gear Boxes & 10 H.P. electrical.

Control Panel semi auto

Cutting Unit (Hydro.)

Technical Specifications

Maximum sheet width that can be formed : 350mm

Maximum sheet thickness in CRCA Strips that can be formed : 3 mm(M.S.)

Horizontal distance between shafts : 400mm

Number of forming stations : 14 nos

Vertical station : 12 nos

Total HP for Line : 16

Speed of the machine : 4mt/minit

Size of machine : 6300 x 1200 x 1000 mm
