Double Layer Roll Forming Machine testing

Dec. 10, 2018

Double Layer Roll Forming Machine testing


Double Layer Roll Forming Machine, is also named Double Sheet Roll Forming Machine. Which have alternating  bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box.  But the  double layer machine can’t produce the 2 profiles at the same time. Cause the upper cut die is up for cut the upper sheets and down for the bottom sheet.

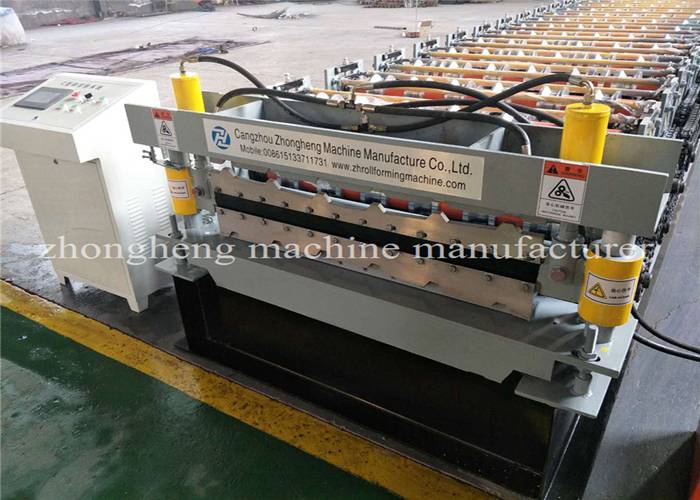

Double Layer Roll Forming Machine testing

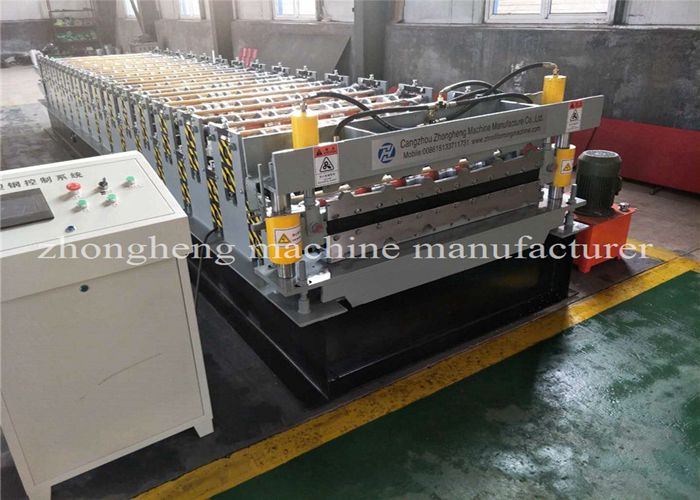

Double Layer Roll Forming Machine testing

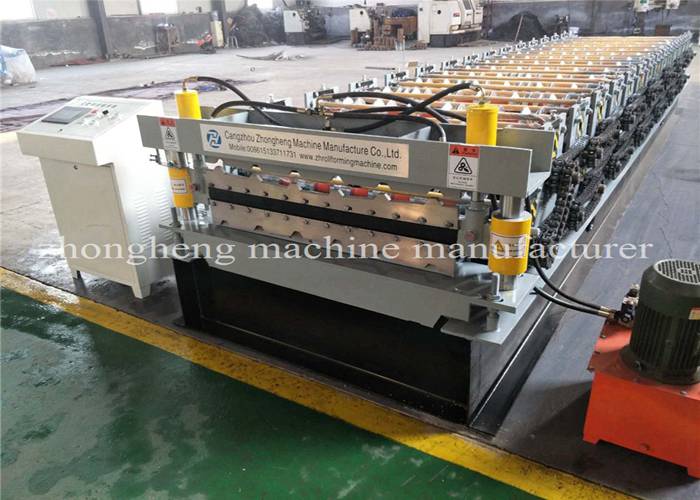

Double Layer Roll Forming Machine testing

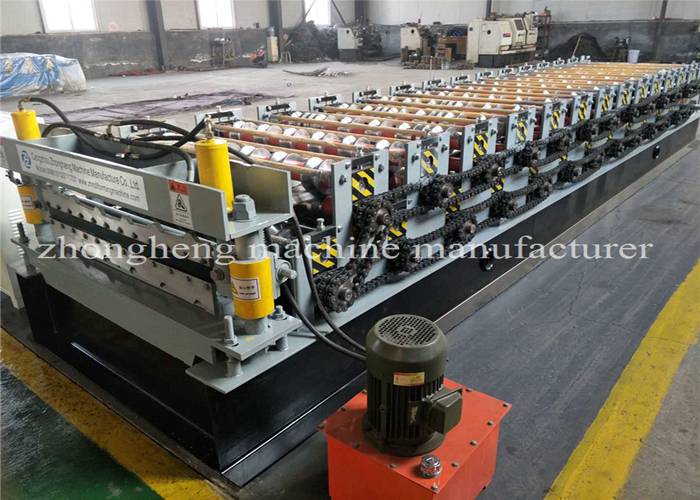

Double Layer Roll Forming Machine testing

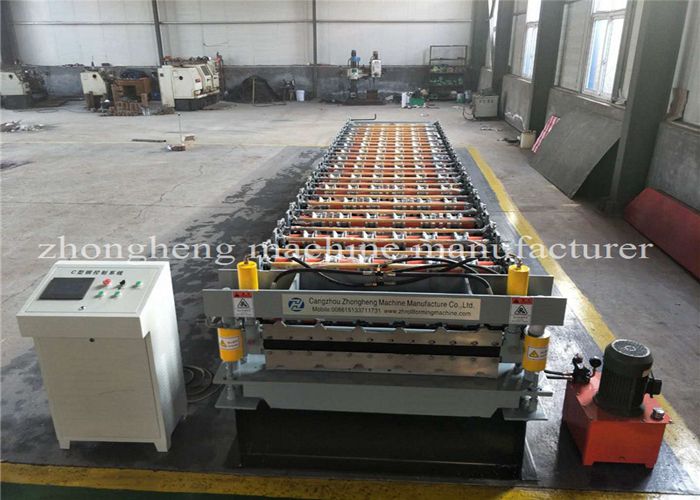

Double Layer Roll Forming Machine testing

Advantage and Disadvantage of Double Layer Roll Forming Machine

Advantage: Save plant spacer, Quick changeover, Reduce the budget.

Disadvantage: Production Capacity is half lower than 2 machines separately, a bit difficult make the adjustment because of crowed condition

Machine Components of a Double Sheet Roll Forming Machine

Uncoiler( Manual or Automatic)

2 Roll Forming Mills(stands) with own guiding device

Cutting Device, 2 couples of blade assembled in one device to suit the 2 profiles

Controlled Box, 2 pieces of Encoder for both mills

Hydraulic Station

Collection Table, the height is adjustable to suit to product exit height.

Brief Specifications of Double Layer Roll Forming Machine

Uncoiler Capacity:  5 Ton( Option: 10 Ton)

Material Width: 500-1500mm, subjected to the profile design

Material Thickness: 0.18-0.8, subjected to profile design

Line Speed: 12-15m/min( High speed is a option)

Motor Power: 5.5KW As usual

Machine structure: Siding Plate, Chromed Stands, Iron Cast cassette

Material of Blade: CR12

Hydraulic Power; 4KW as usual

PLC: Siemens or Panasonic

Encoder: Omron

Inverter: Yaskawa

Touch Screen: MCGS or Siemens

Controlled box adopt Aviation plug  for easy connection the wires

Voltage: 380V, 50HZ or customized
