Product Name:Africa Market Barrel Corrugated Sheet Forming Machine

Components:we have different sizes for reference

Inquire Now

None

Next Product

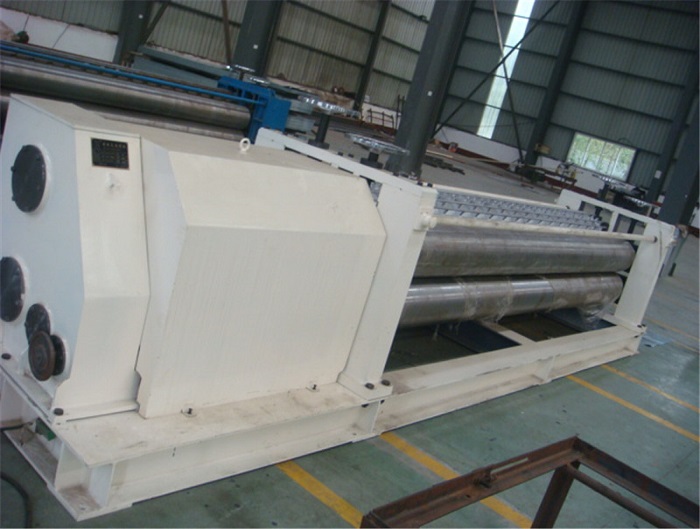

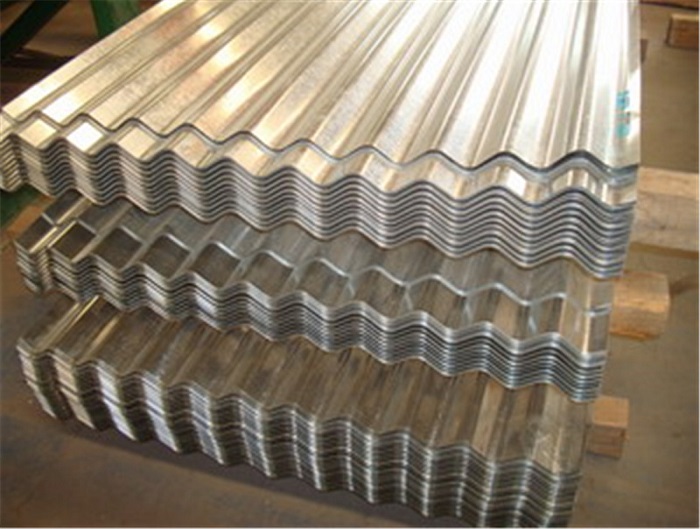

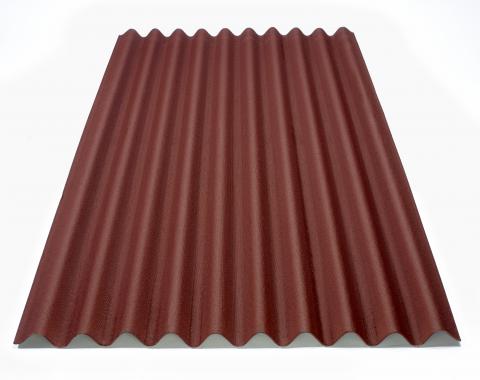

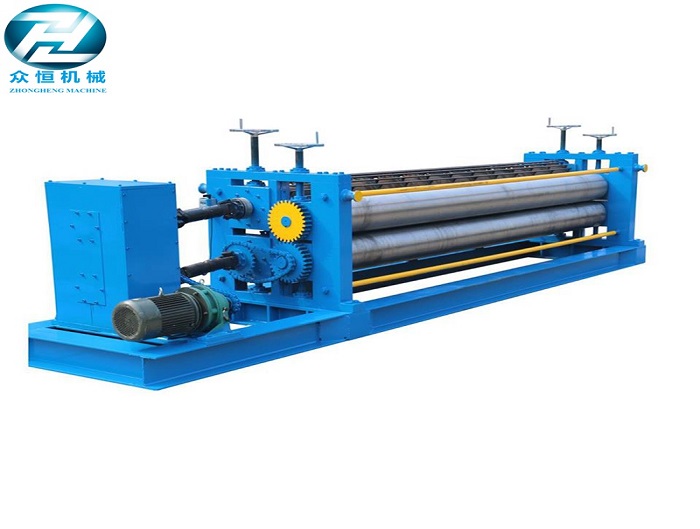

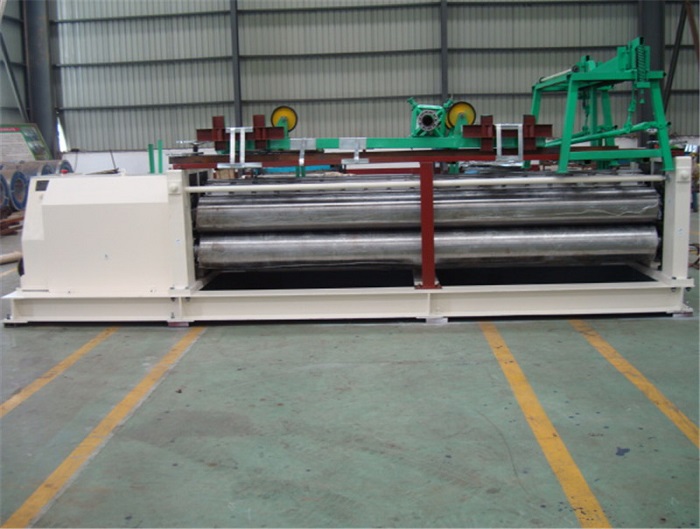

Africa Market Barrel Corrugated Sheet Forming Machine is a kind of roofing sheet roll forming machine for making roofing panel sheet made by colour steel or PPGI.round wave is a kind of description of metal sheet, it is also called metal sheet roll former.round waveroofing sheet is quite popular in South African, Vietnam , Dominica repubilic, Ethiopia and other areas.

Why some sheet panel need the round wave machine while some sheet panel machine need the cold roll forming machine?
The difference is that, the sheet panel made by the round waveroofing sheet machine is much thinner and with hardness up to 550 Mpa.The thickness range is: 0.2-0.6. But the thickness of the cold roll forming machine coil is 0.3-1.0mm as usual.
Which machine with higher capacity between the round wave machine and cold roll forming machine?
The capacity of the round wave machine and cold roll forming machine is more or less similar capacity, the round wave machine can press several pieces of the sheet at one time.
For more information about the round wave machine
please refer to below information


Barrel Corrugated Roof Tile Machine
Techincal Parameters
Suitable MaterialFull Hard, Semi-hard, Soft Galvanised Sheets, Alu-zinc Alloy & PPGI Sheet
Material Length2500/3000/3660/4267mm
Material Width762/914/1000mm to 1250mm
Material Thickness0.15-0.45mm
Drive22KW, AC For Type A 3 Phase
O.D of Corrugation Rolls380mm(20mm Diameter Rod)
O.D of Pinch Rolls317mm
Corrugation ParametersAs per 3316 to Jis-Sgch-1987
WT. of the machine6 tones Approx
Production Capacity1.5-1.8 meter per minnute

Thin Panel Barrel Sheet Forming Machine 18-76

Thin Panel Barrel Sheet Forming Machine 18-76

Thin Panel Barrel Sheet Forming Machine 18-76

Trade Terms


1.Payment Term:30% paid by T/T as down payment,Balance 70% after inspection before delivery. After finish production, we will inspect the machine and inform the buyer, the buyer come inspect goods, then pay the balance before shipping.

2.Delivery Time:We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.Port of Loading: Tianjin


After sale service


1.Warranty: We provide one year free warranty , and technical support for entire life .

During the warranty, the replaceable parts are free,buyers need to pay for the shipping .We will also provide you instruction manual to show you how to operate the machines.

2.Installation and trainning:We could send technician to your country to install machine if you need. The buyer need to pay extra cost, including:visa, round trip tickets, accommodation, salary of USD 100~120 per day.


ZHONGHENG also have Coil Process Equipments(Slitting Line, Cut To Length Line), C Purlin Roll Forming Machine, Roof Sheet Roll Forming Machine. Wall Cladding Roll Forming Machine, Steel Deck Roll Forming machine, etc for One-Stop service for your steel structure plan.
