Product Name:L angle roll forming machine

Components:Decoiler, Main Machine, PLC, Hydraulic System, Run out Table

Inquire Now

None

Next Product

L angle roll forming machine

This Custom Metal Section Cold Roll Forming Machine for Window is the most popular one among the customers in the metal industry construction for metal or steel section materials.Industrial building and construction projects rely on drywall steel stud systems. The quick installation and light weight characteristics of steel framing makes this an ideal product. These tools are engineered to match standard stud sizes used in commercial building.


The rollers are make up with Cr12Mov material, which is more wear-resistant.We adopt non-stop cutting system. With the help of servo tracking cutting system, the speed can up to 50m/min.

Machine Specifications

1.Power requirement Type380v/3ph/50hz


Main Motor power5.5kw


Cutter power3kw
2.Forming speed(m/min)45m/min maxNot include the time of cutting
3.Forming stations10 stations
4.Thickness of Mild steel0.5-1mm
5.Material of rollersCR12
6.Thickness of structure20mm
7Forming shaft diameter(mm)50
8DriveGear
9Type of cuttingHydraulic cutting
10.Control system PLC and inverter control
11.Install dimension(depend on the final design)4.5m×0.6m×1.2mWithout panel length
12.Total weight(Approx)2.5TDepend on final design
13.ScreenText screen/touch screen

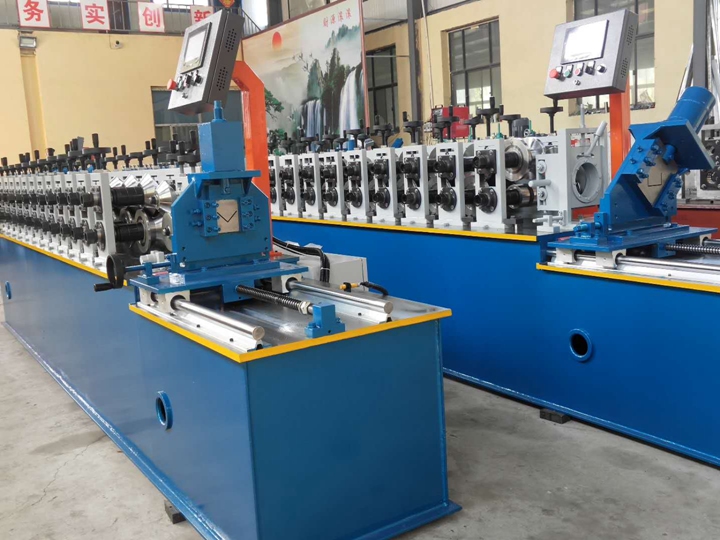

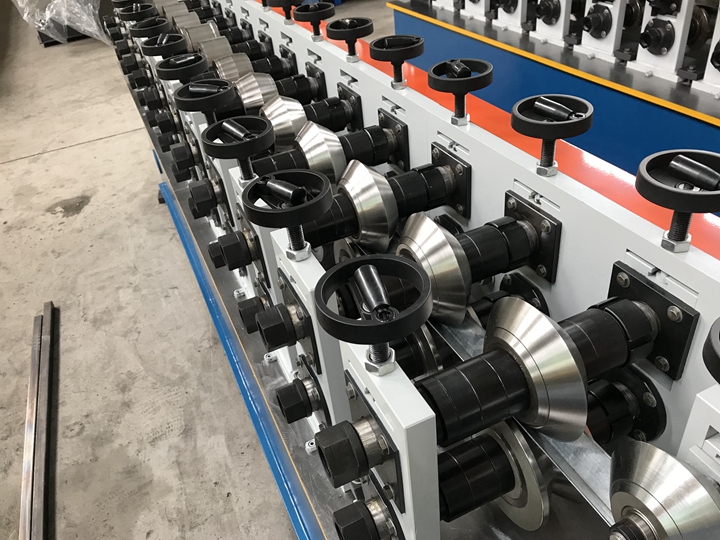

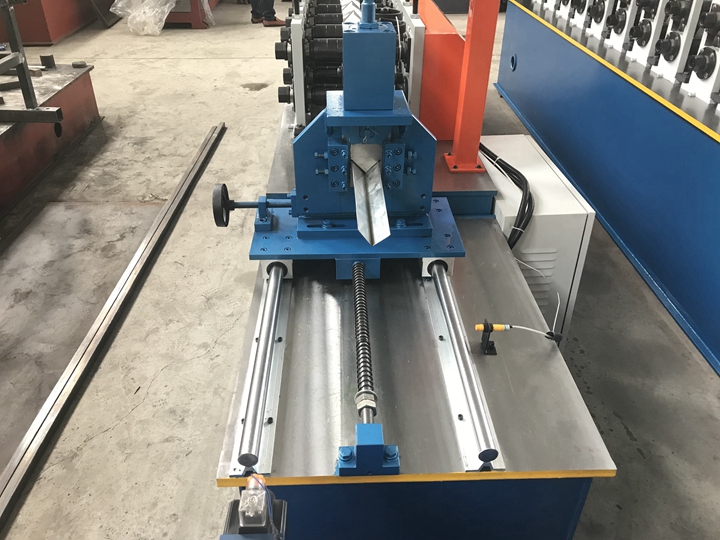

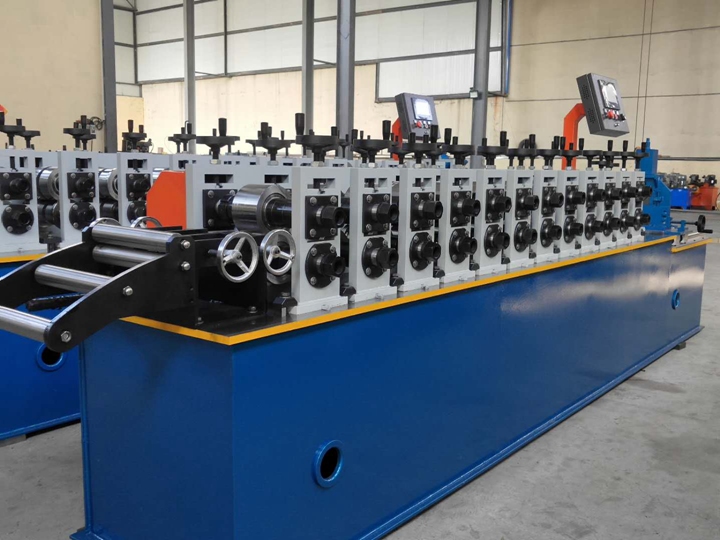

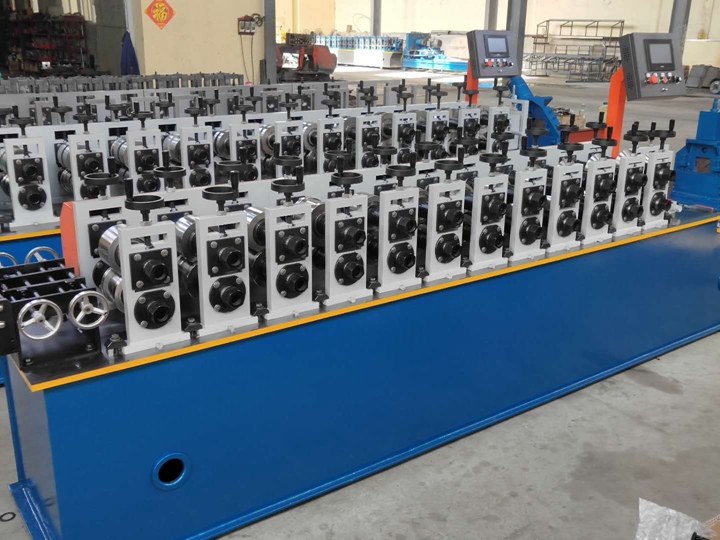

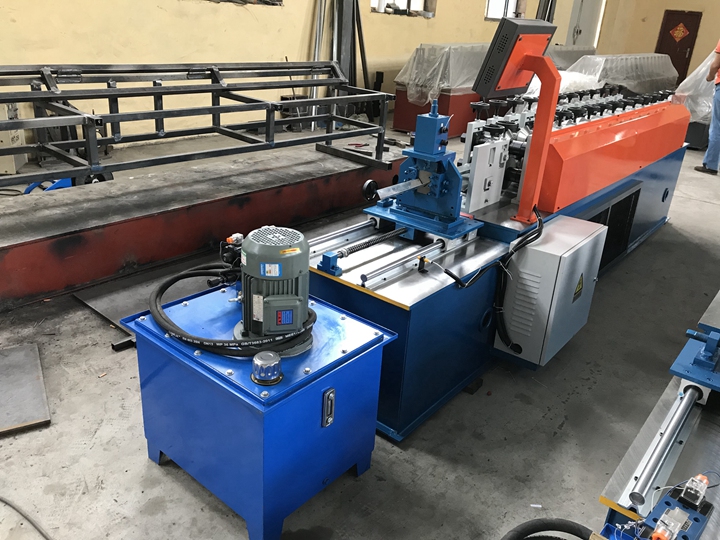

More Pictures for reference :

L angle roll forming machine

L angle roll forming machine

L angle roll forming machine

L angle roll forming machine

L angle roll forming machine

Trade Terms


1.Payment Term:30% paid by T/T as down payment,Balance 70% after inspection before delivery. After finish production, we will inspect the machine and inform the buyer, the buyer come inspect goods, then pay the balance before shipping.

2.Delivery Time:We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.Port of Loading: Tianjin


After sale service


1.Warranty: We provide one year free warranty , and technical support for entire life .

During the warranty, the replaceable parts are free,buyers need to pay for the shipping .We will also provide you instruction manual to show you how to operate the machines.

2.Installation and trainning:We could send technician to your country to install machine if you need. The buyer need to pay extra cost, including:visa, round trip tickets, accommodation, salary of USD 100~120 per day.


ZHONGHENG MACHINE also have Coil Process Equipments(Slitting Line, Cut To Length Line), glazed tile forming machine,roof forming machine,corrugated sheet forming machine,Wall Cladding Roll Forming Machine,roller shutter door machine,door frame forming machine,floor deck forming machine,C Z purlin forming machine,stud and track forming machine for One-Stop service for your steel structure plan.
