Product Name:Stone Coated Roof Tile Production Line - Roll Forming Machine

Components:Decoiler, Main Machine, PLC, Hydraulic System, Run out Table

Inquire Now

None

None

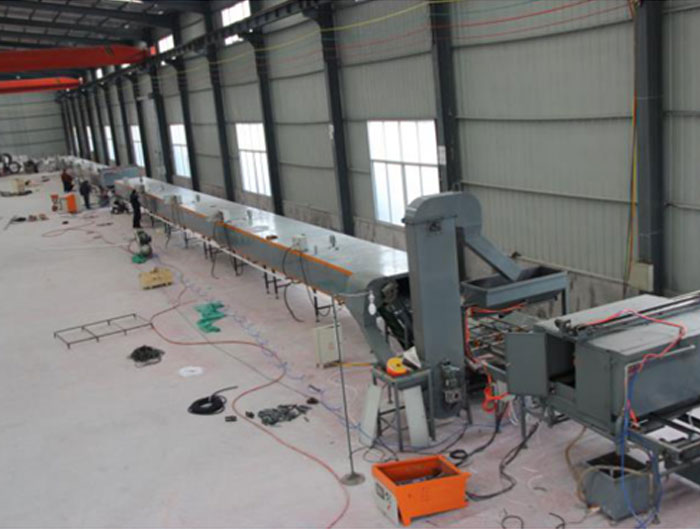

Stone Coated Roof Tile Production Line - Roll Forming Machine

Stone Coated Roof Tile Production Line - Roll Forming Machine

Detail Introduction:


NO. 1 Auto bottom glue spraying section
Appearance size4000*1000*2000mm
 Driving section3KW Excitation motor or frequency speed regulation (AS per customers' requirements)
Automatic pressure spray tank1 set; Capability: 200kg; Range: 0.6~1Mpa
Automatic glue machine motorServo motor; Power: 750w; PLC
Automatic spray gun4 set (spare parts)
Dust collecting fan1 set; Power: 200w
Damp proof lamp1 pc; Power: 100w
Conveying deviceChain reciprocating
Air compressor1 set; Power: 7.5kw
Dust control of axial flow fan1 set; Power: 200w
Agitator1 set; Power: 1.5kw
Stone Coated Roof Tile Production Line - Roll Forming Machine


NO. 2 Auto stone coated section
Appearance size3500*1000*1500mm
FrameworkSteel welding

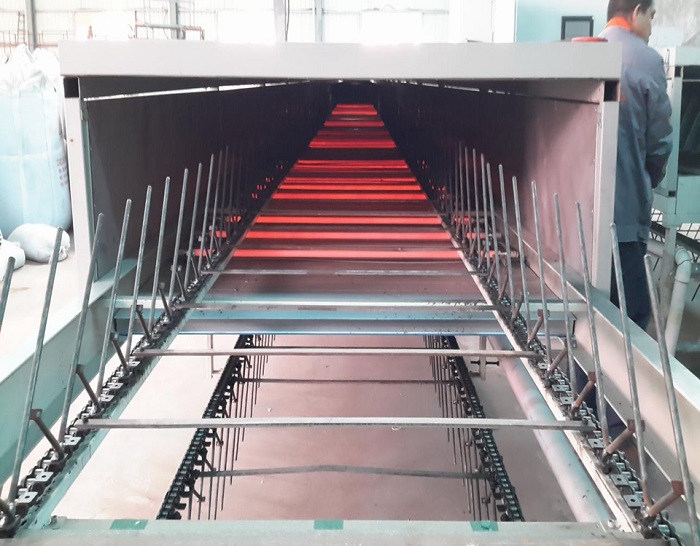

NO. 3 The first time drying section
Appearance size32000*1650*1500mm
FrameworkSteel welding
Frame   type   thermal   insulation wall1.2mm cold steel with Rock wool
Speed controlTransducer
Infrared heating tube60pcs; Power: 60kw
Conveying deviceChain reciprocating
Temperature adjust deviceTED Auto Temperature control device 5 setsAdjust range: 0-160°
Stone Coated Roof Tile Production Line - Roll Forming Machine

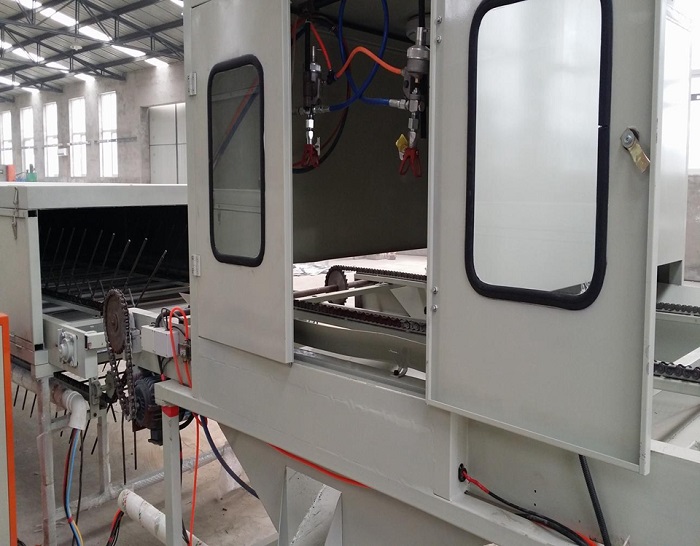

 NO. 4 Auto face glue spraying section
Appearance size3000*850*2000mm
FrameworkSteel welding
Damp proof lamp1 pc; Power: 100w
Automatic pressure spray tank1 set; Capability: 200kg; Range: 0.6~1Mpa
Conveying deviceChain reciprocating
Automatic spray gun4 sets (spare parts)
Manual patch glue gun4 sets
Dust control of axial flow fan1 set; Power: 200w
Stone Coated Roof Tile Production Line - Roll Forming Machine

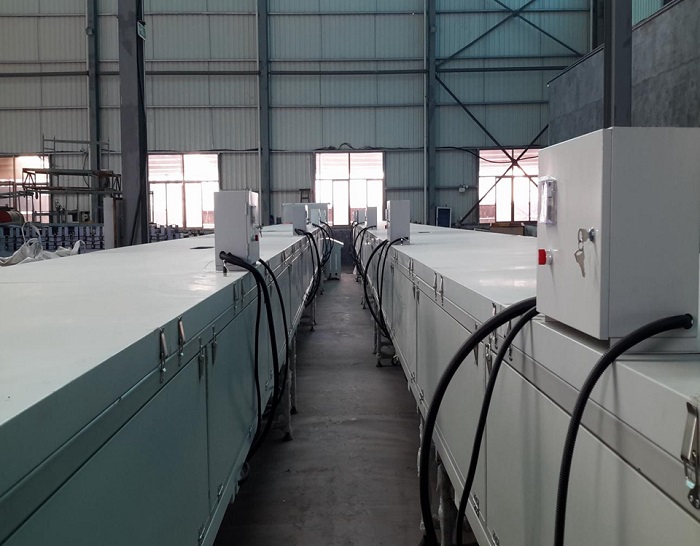

NO. 5 The second time drying section

Appearance size30000*1000*1200mm
FrameworkSteel welding
Frame type thermal insulation wall1.2mm cold steel with Rock wool
Automatic temperature controller4 sets; Range: 0°~160°
Infrared heating tube30pcs; Power: 30kw
Conveying deviceChain reciprocating
Air cooling device1 set; Power: 200w

Stone Coated Roof Tile Production Line - Roll Forming Machine
