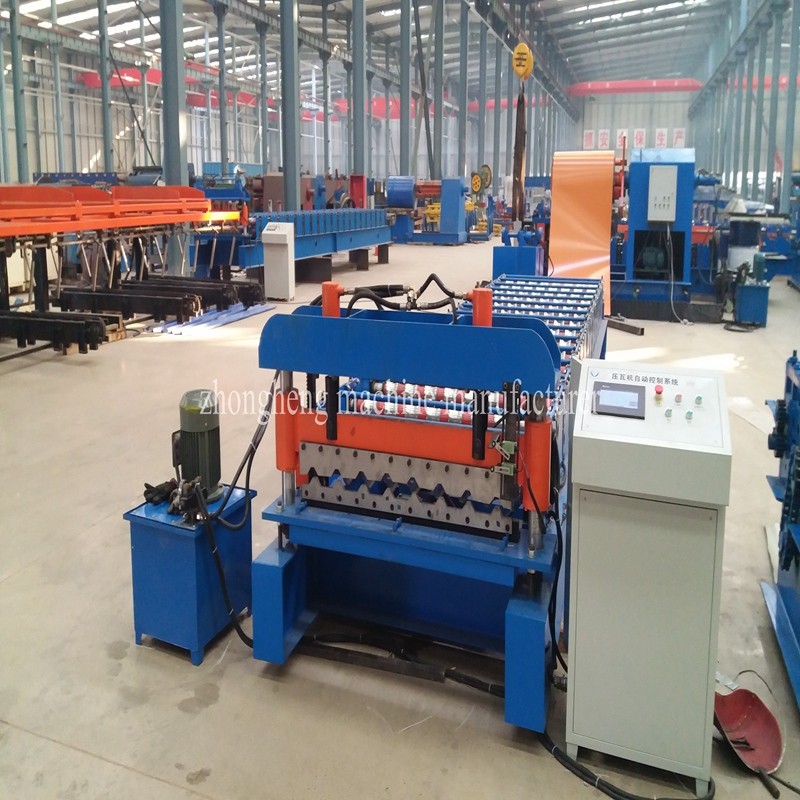

Product Name:Roofing Sheet Making Machine | Roll Forming Machine Factory‎

Components:Decoiler, Main Machine, PLC, Hydraulic System, Run out Table

Inquire Now

None

Next Product

Roofing Sheet Making Machine | Roll Forming Machine Factory‎


Where to use the roofing panel roll forming machine?

People use Roofing Sheet Machine, Such as  Roofing Sheet Roll Forming Machine, Trapezoidal Sheet Roll Forming Machine to produce metal sheet for industrial, commercial and residential roof cladding. Although there are numerous profiles of roofing sheet, the process of forming is the same. Coils (GI coils, PPGI coils, GL coils, PPGL coils, etc) go through decoiling, roll forming, cutting and then come out the desired roof products.

Roofing Sheet Making Machine | Roll Forming Machine Factory‎

Roofing Sheet Making Machine | Roll Forming Machine Factory‎

Roofing Sheet Making Machine | Roll Forming Machine Factory‎

Roofing Sheet Making Machine | Roll Forming Machine Factory‎

Roofing Sheet Making Machine | Roll Forming Machine Factory‎


NO.ITEMPARAMETERNOTE
1.   Suitable material TypePre-painted sheet, Galvanized sheet
Width(mm)1250mm
Thickness(mm)0.3-0.8mm
Yield stress(mm)G220-G300
2.Product specificationsDetail as the attached file
LengthAny length
3.Power requirement Type380v/3ph/50hzMotor brand shanghai Lichao
Main Motor power4kw
Cutter power4kw
4.Forming speed(m/min)20m/minNot include the time of cutting
5.Manual Decoiler(Optional)TypeManual
Max capacity5t
Suitable coil OD(MM)1000
Suitable coilID(MM)508
6.Forming stand18Depend on actual design
7.Thickness of structure16mm
8.Forming shaft diameter(mm)70 solid
9.Type of cuttingRoll formed and length-set cutting
10.Control systemPanasonic PLC and inverter
11.Install dimension(depend on the final design)9.2m×1.5m×1.3mWithout panel length
12.Total weight(Approx)5.2T

Depend on final design


IF YOU ARE INTERESTED IN OUR IBR SHEET MACHINE, OR ANY OTHER ROLL FORMING MACHINE(ROOF MACHINE, PURLIN ROLL FORMING MACHINE, FLOOR DECKING MAKING MACHINE, ETC) OFFERED BY ZHONGHENG, PLEASE FEEL FREE TO CONTACT US.
