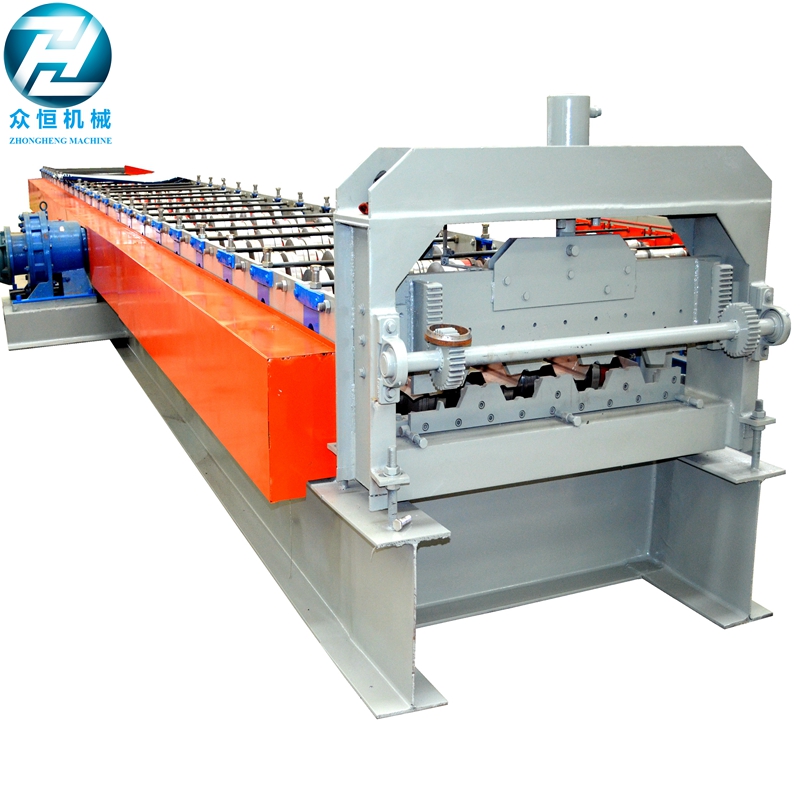

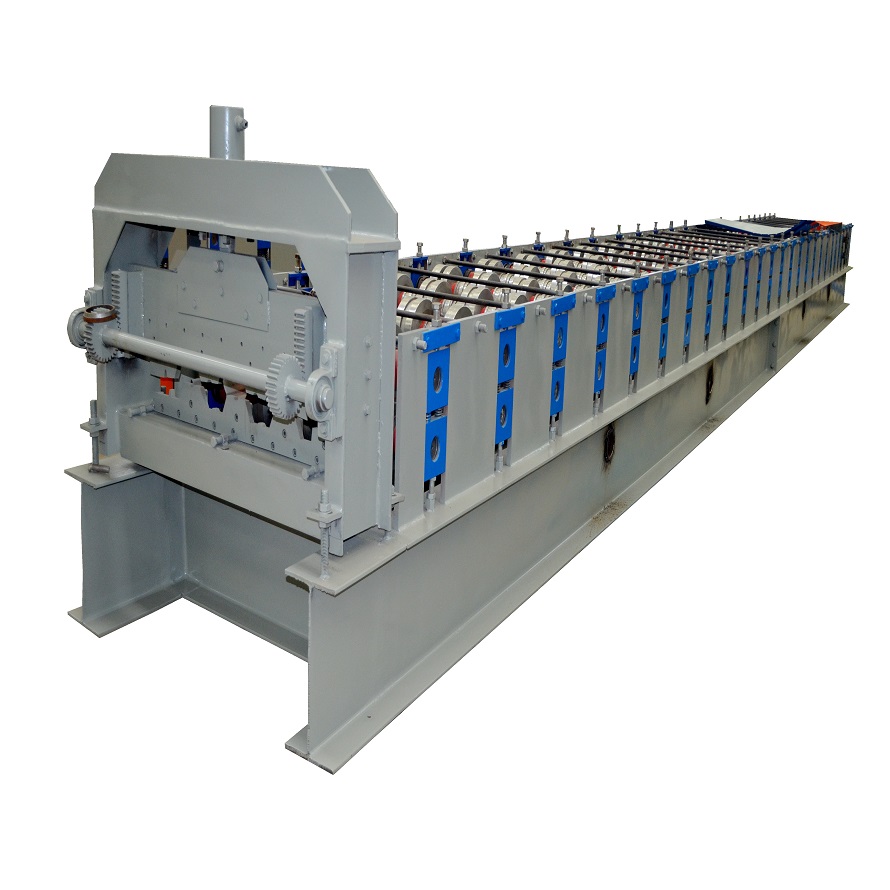

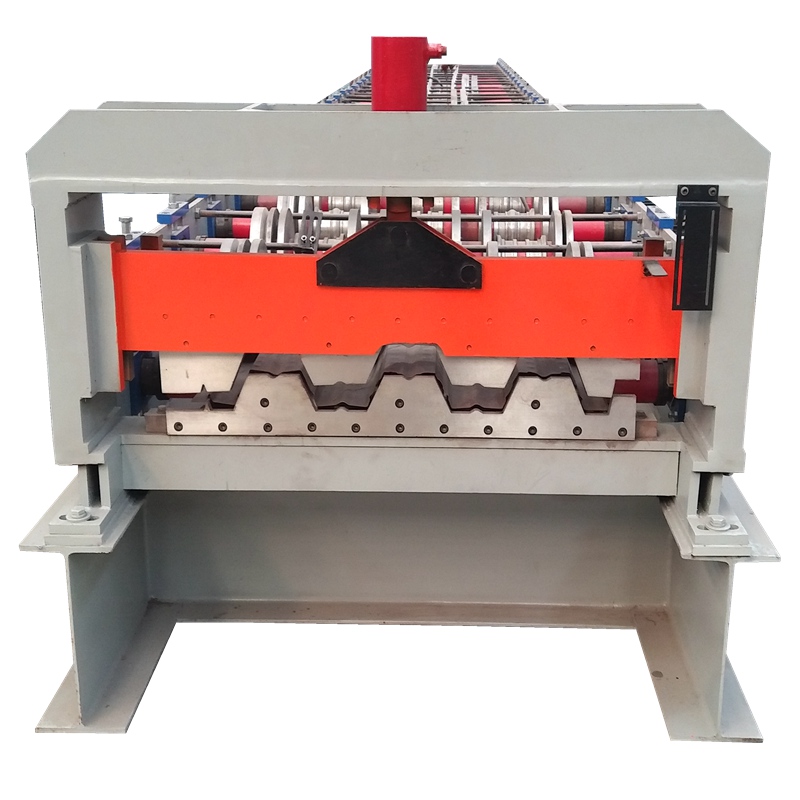

Product Name:Steel Decking Roll Forming Machine - Roll Forming Machine

Components:Decoiler, Main Machine, PLC, Hydraulic System, Run out Table

Inquire Now

None

Next Product

Steel Decking Roll Forming Machine - Roll Forming Machine

Instead of concrete floor, steel deck resists the vertical loading associated with the weight of the concrete and the construction loads. Based on the needs, we developed floor decking Roll Forming Machine to make the production of floor deck in a huge production. For this kind of machine, the working speed could reach 25m/min and the thickness from 1-3mm.Our company also have Closed Floor Decking Forming Machine,Triple Floor Decking Forming Machine.

Galvanized Steel Floor Deck Panel Roll Forming Machine

What's Composite Floor Deck?

A composite steel deck combines the high tensile strength of steel with the compressive strength of concrete to improve design efficiency and reduce the material necessary to cover a given area. Additionally, composite steel decks supported by composite steel joists can span greater distances between supporting elements(Such as C Purlins, Z Purlin, H Steels). And have reduced live load deflection in comparison to previous construction methods.



Click Here to check the video

Advantages of Floor decking forming machine are as follows:

1.Floor decking sheet produced by this machine has the features of low cost , light weight buy high strength , shourt building period and re-cycle use .

2.Save material with no waste

3.Easy operation , low maintenance cost

4.One machine for 3 models for optional (by changing spacers)


Technical Parameters

NO.ITEMPARAMETERNOTE
1.   Suitable material TypeGalvanized sheet
Width(mm)1200mm-1250mm
Thickness(mm)0.8mm-1.6mm
Yield stress(mm)G550mpa
2.Product specificationsDetail as the attached file
LengthAny length
3.Power requirement Type380v/3ph/50hz
Main Motor power15.5kw+15.5KW
Cutter power11kw
4.Forming speed(m/min)8-15Not include the time of cutting
5.Hydraulic Decoiler  TypeManual
Max capacity7ton
Suitable coil OD(MM)1250
Suitable coilID(MM)508

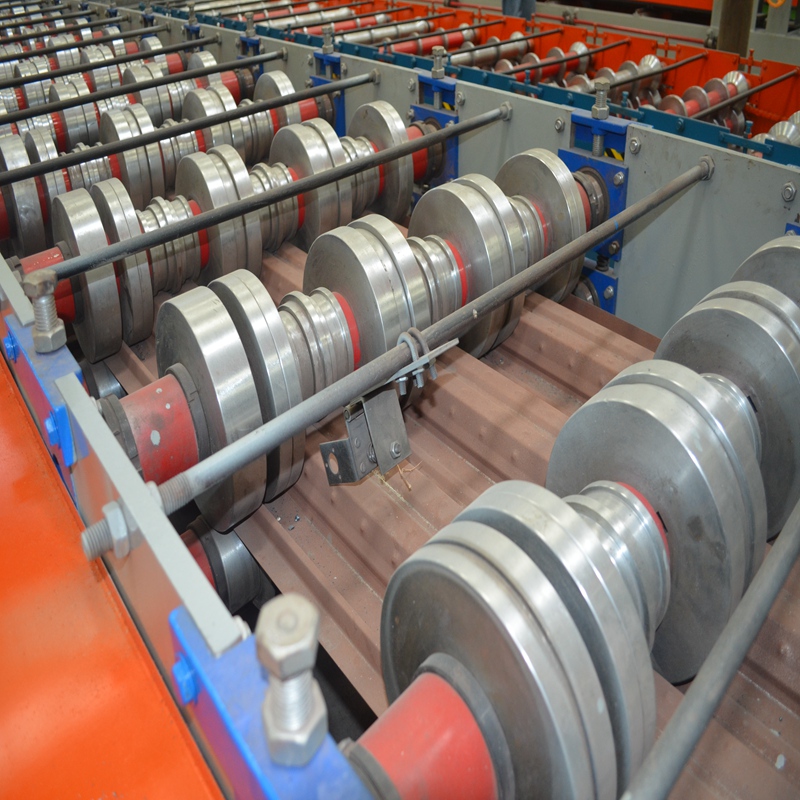

6.Forming stand32Depend on actual design
7.Thickness of structure20mm A3 steel plate
8.Forming shaft diameter(mm)100 cr15
9.Type of cuttingRoll formed and length-set cutting
10.Control systemPLC and inverterPanasonic brand
11.Install dimension(depend on the final design)13.2m×1.5m×1.55mWithout panel length
12.Total weight(Approx)12TDepend on final design

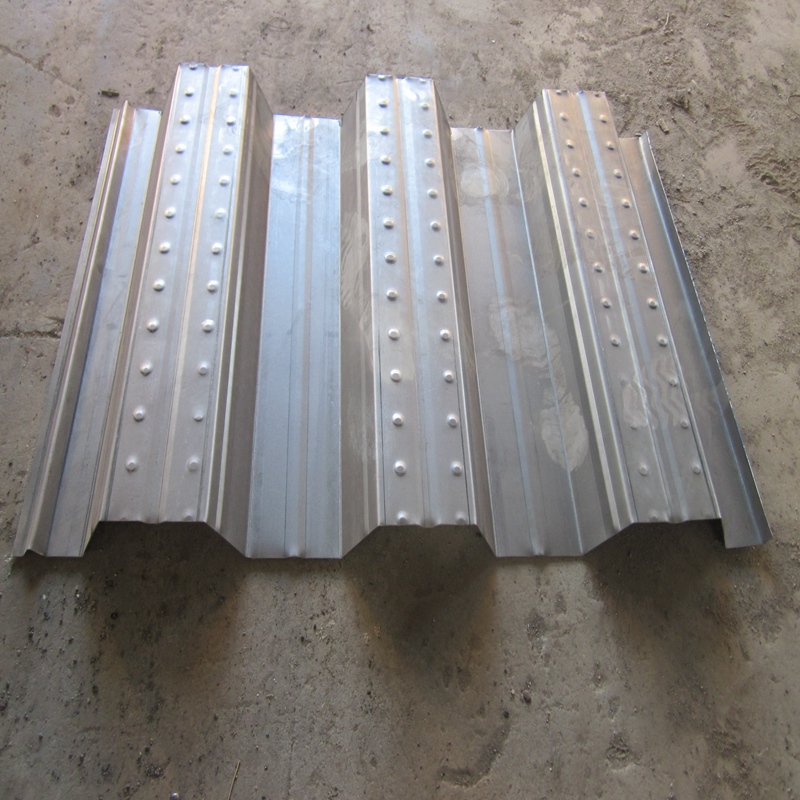

More Floor Deck profile designs for your reference

Construction Material Metal Deck Sheet Roll Forming Machine

Galvanized Steel Floor Deck Panel Roll Forming Machine

Galvanized Steel Floor Deck Panel Roll Forming Machine

Trade Terms


1.Payment Term:30% paid by T/T as down payment,Balance 70% after inspection before delivery. After finish production, we will inspect the machine and inform the buyer, the buyer come inspect goods, then pay the balance before shipping.

2.Delivery Time:We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.Port of Loading: Tianjin


After sale service


1.Warranty: We provide one year free warranty , and technical support for entire life .

During the warranty, the replaceable parts are free,buyers need to pay for the shipping .We will also provide you instruction manual to show you how to operate the machines.

2.Installation and trainning:We could send technician to your country to install machine if you need. The buyer need to pay extra cost, including:visa, round trip tickets, accommodation, salary of USD 100~120 per day.

Contact us for more information about roll forming machine and slitting line .
