Multi profiles double layer roll forming machine PV4 Tr Double deck roofing sheet forming machine/tr roof sheet making machine

Jul. 31, 2021

Product Description

Product Application

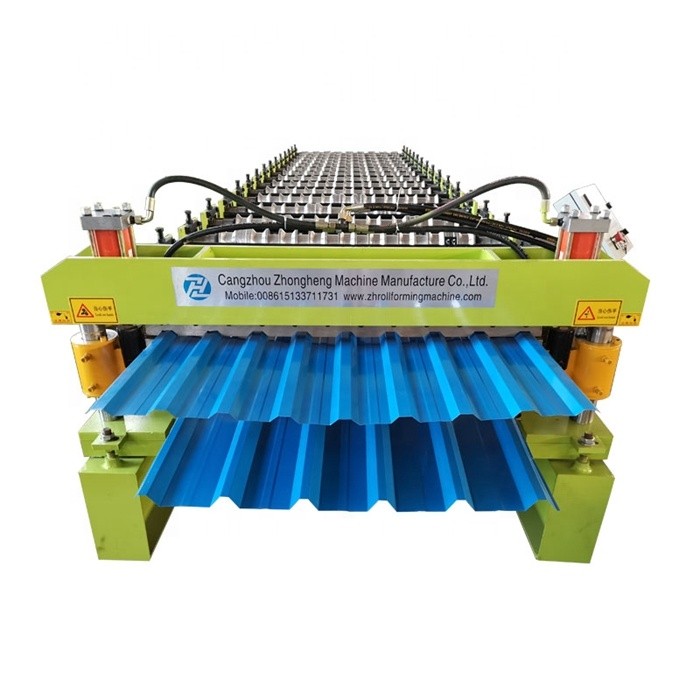

This double layer roll forming machine. It can form the steel sheet according to customer’s requirement continuously, automatically cut to length. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realize the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel roof or wall panel. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.

Multi profiles double layer roll forming machine PV4 Tr Double deck roofing sheet forming machine/tr roof sheet making machine
Detailed Images
Multi profiles double layer roll forming machine PV4 Tr Double deck roofing sheet forming machine/tr roof sheet making machine

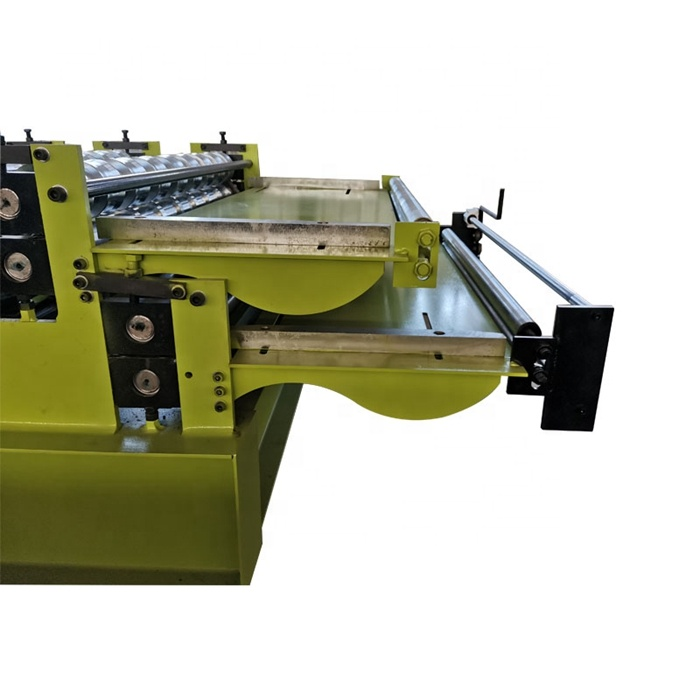

Feeding Table



Adopt guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming system. Can adjust the guiding bar with loosing the fixing bolts to feed sheet in right position. It’s fixed structure to make sure can not move easily. The feeder with rolls can avoid the scratch

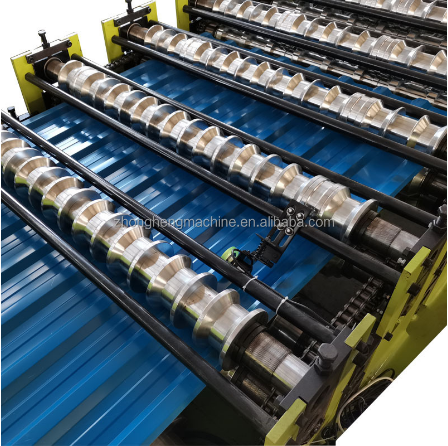

Roll Forming Rollers


All rollers material adopt high quality No.45 steel, with hard chrome coated on surface, all treatment by full CNC machines, to make sure the rollers with good rigidity and precision, and form perfect roofing sheet as per design.


Multi profiles double layer roll forming machine PV4 Tr Double deck roofing sheet forming machine/tr roof sheet making machine

Multi profiles double layer roll forming machine PV4 Tr Double deck roofing sheet forming machine/tr roof sheet making machine





Hydraulic Cutting device

Nombre: Mecanismo de corte
Marca: ZH
Adopta la unidad de motor y la ubicación
automática para decidir la dimensión y
cortar los productos de destino.
Material de cuchillas: Cr12,tratamiento

de enfriamiento





Multi profiles double layer roll forming machine PV4 Tr Double deck roofing sheet forming machine/tr roof sheet making machine


Manual decoiler

Coil supporter ,capacity 5Ton

Its included in the quote for free







Multi profiles double layer roll forming machine PV4 Tr Double deck roofing sheet forming machine/tr roof sheet making machine

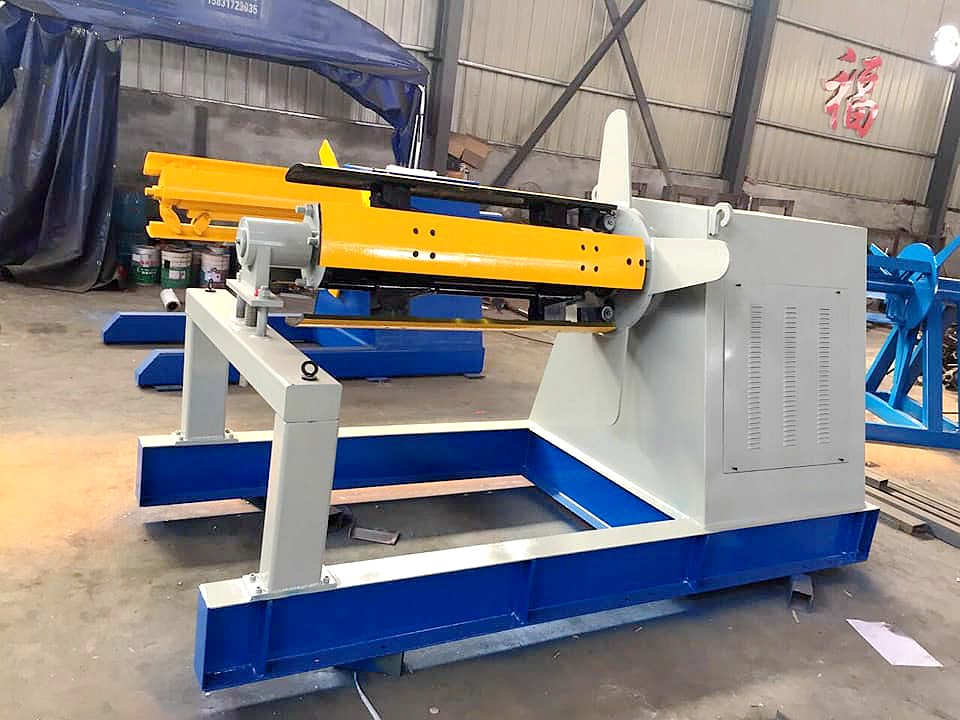

Hydraulic decoiler

Optional

Automatic coil supporter ,it has the function of forward ,rewind ,coil car up and down ,speed adjustable
