European Style Corrugated Roof Sheet Roll Forming Machine‎European Style Corrugated Roof Sheet Roll Forming Machine‎European Style Corrugated Roof Sheet Roll Forming Machine‎European Style Corrugated Roof Sheet Roll Forming Machine‎European Style Corrugated Roof Sheet Roll Forming Machine‎

Product Name:European Style Corrugated Roof Sheet Roll Forming Machine‎

Components:Decoiler, Main Machine, PLC, Hydraulic System, Run out Table

Inquire Now

None

Next Product

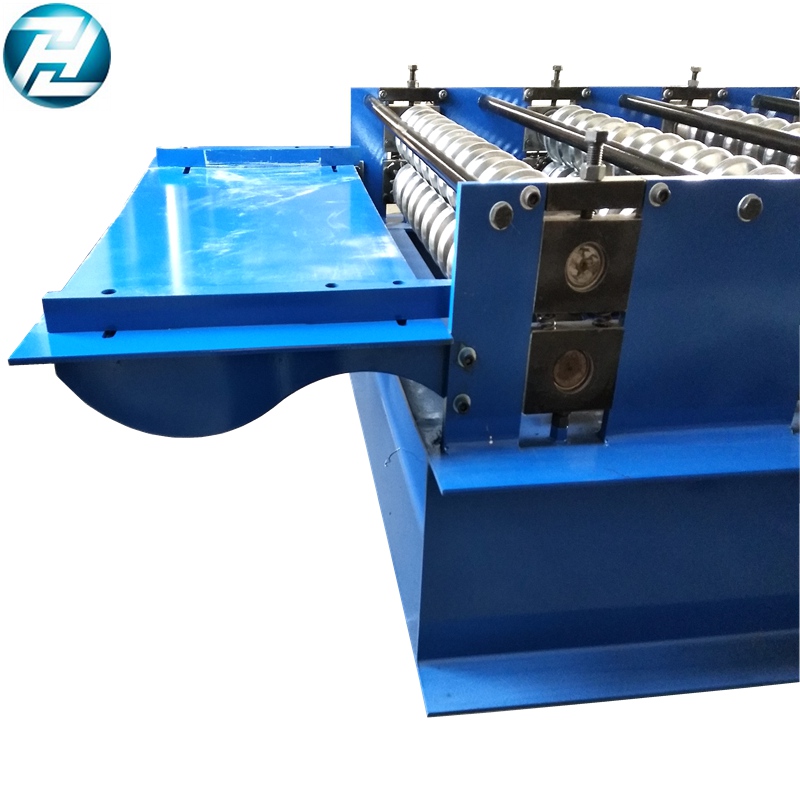

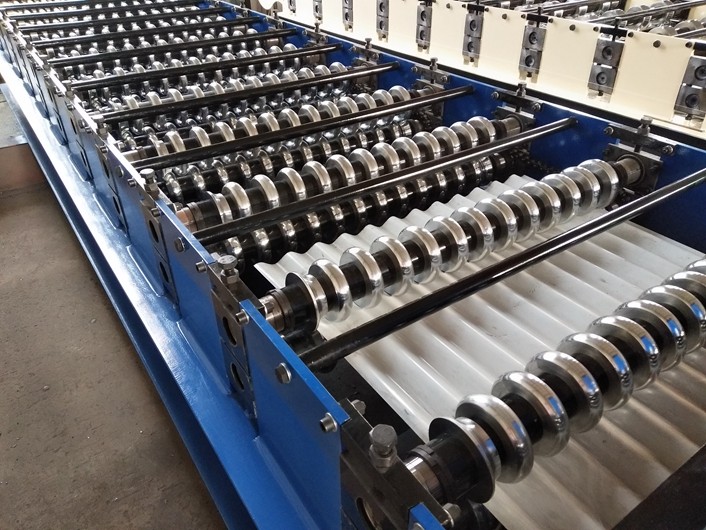

European Style Corrugated Roof Sheet Roll Forming Machine‎ a special machine, can produce various width of sheets without any mould change, only adjusting the feeding guiding.

ZHONGHENG also have another roll forming machines for Roof Ridge Cap, Metal Roof Tile, IBR Sheets and Corrugated Sheets  for Steel Buildings. And also for Downspout and Gutter System.


Corrugated sheet is a very important cladding element for commercial, residential and industrial roofing and walling. The traditional shape of corrugated material is the round wavy style derived from sinus curve. And today a lot of corrugated profiles come out to meet the needs of different applications. If you have your conjugation profile, let's customize the corrugated sheet roll forming machine for you.  Furthermore , ZHONGHENG have several design of  metal sheet roll forming machines for corrugated sheets. And we are the manufacturer of China Roll Forming Machine


Traditional corrugated profile is 914mm as the feeding width, 762mm as the covering width, 76.2mm as the pitch(distance between two consecutive curves), and 18mm as the depth(wave height). Also, there are mini corrugated profile,  deep corrugated profile, etc. In South African, customer always buy a double layer roll forming machine for IBR sheets and corrugated sheets instead of IBR sheet roll forming machine and corrugated sheets roll forming machine.  Finally to save money and factory space.


NO.ITEMPARAMETERNOTE
1.   Suitable material TypePre-painted sheet, Galvanized sheet
Width(mm)925mm
Thickness(mm)0.3-0.8mm
Yield stress(mm)G220-G300
2.Product specificationsDetail as the attached file
LengthAny length
3.Power requirement Type380v/3ph/50hzMotor brand shanghai Lichao
Main Motor power4kw
Cutter power4kw
4.Forming speed(m/min)20m/minNot include the time of cutting
5.Manual Decoiler(Optional)TypeManual
Max capacity5t
Suitable coil OD(MM)1200
Suitable coilID(MM)508

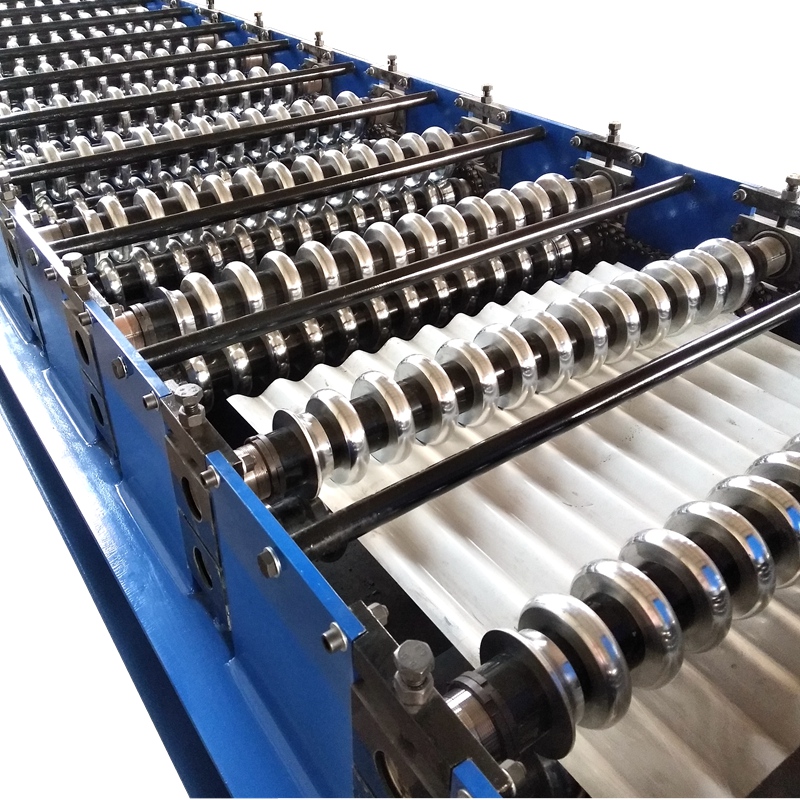

6.Forming stand18Depend on actual design
7.Thickness of structure16mm
8.Forming shaft diameter(mm)70 solid
9.Type of cuttingRoll formed and length-set cutting

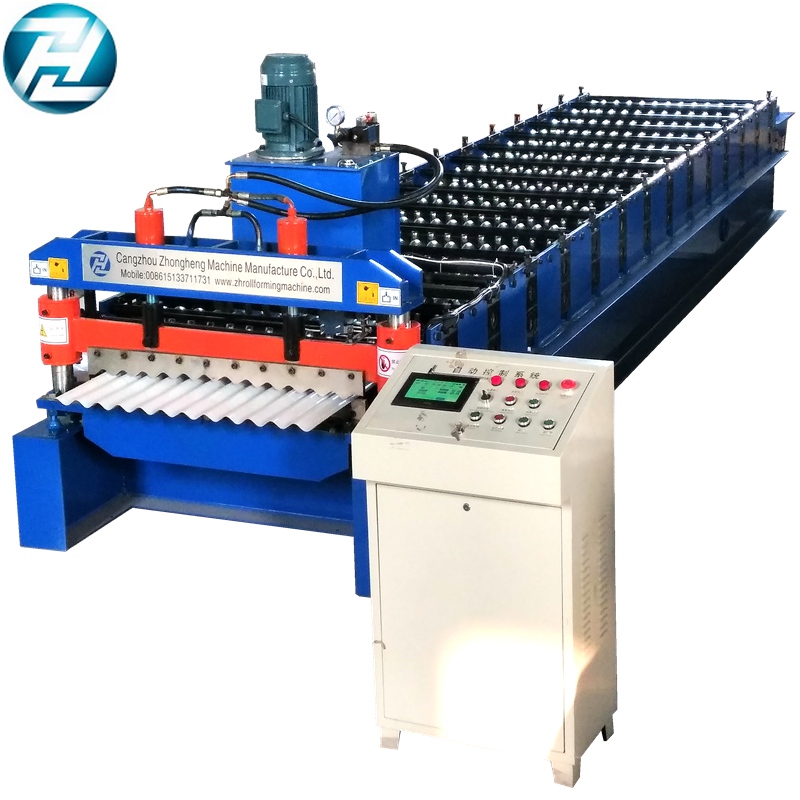

10.Control systemPanasonic PLC and inverter
11.Install dimension(depend on the final design)9.2m×1.5m×1.3mWithout panel length
12.Total weight(Approx)5.3TDepend on final design

This roofing is the most popular model of roofing, its widely used in roofing and wall of the workshop.

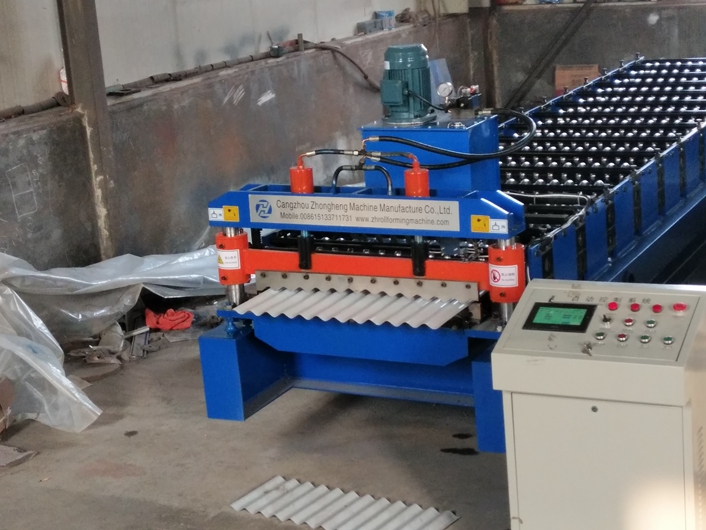

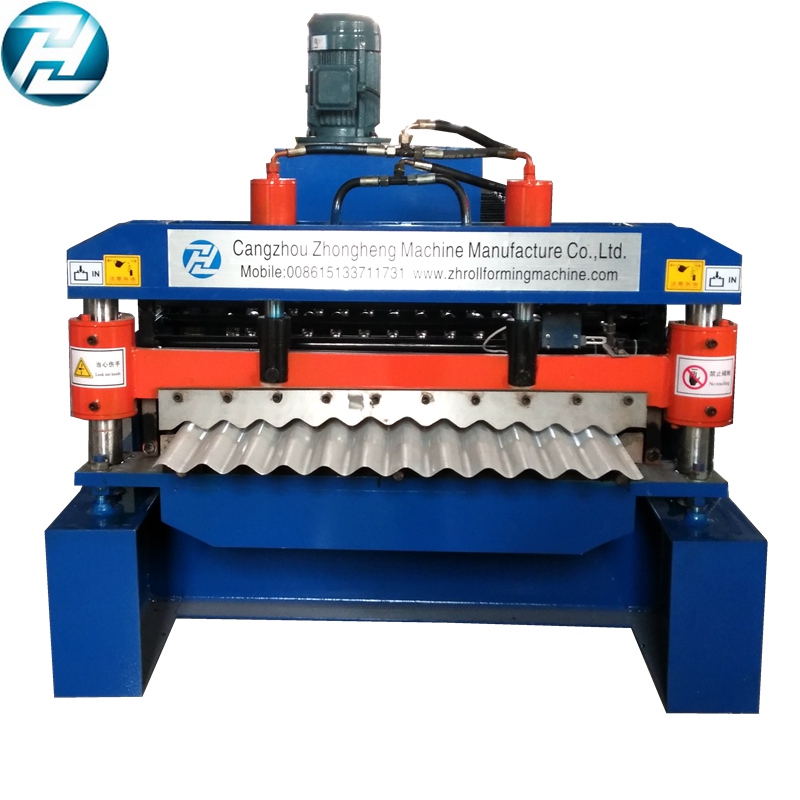

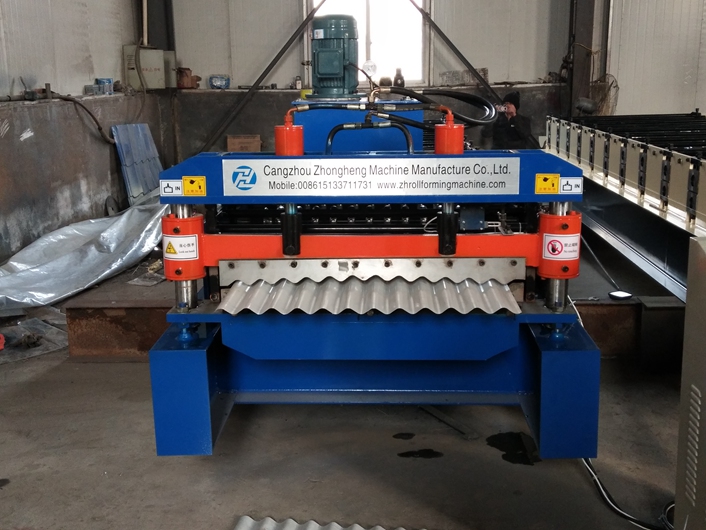

There is two cylindas on the cutting head of this machine, the hydraulic oil is running into the cylinda, control the cutter easily.

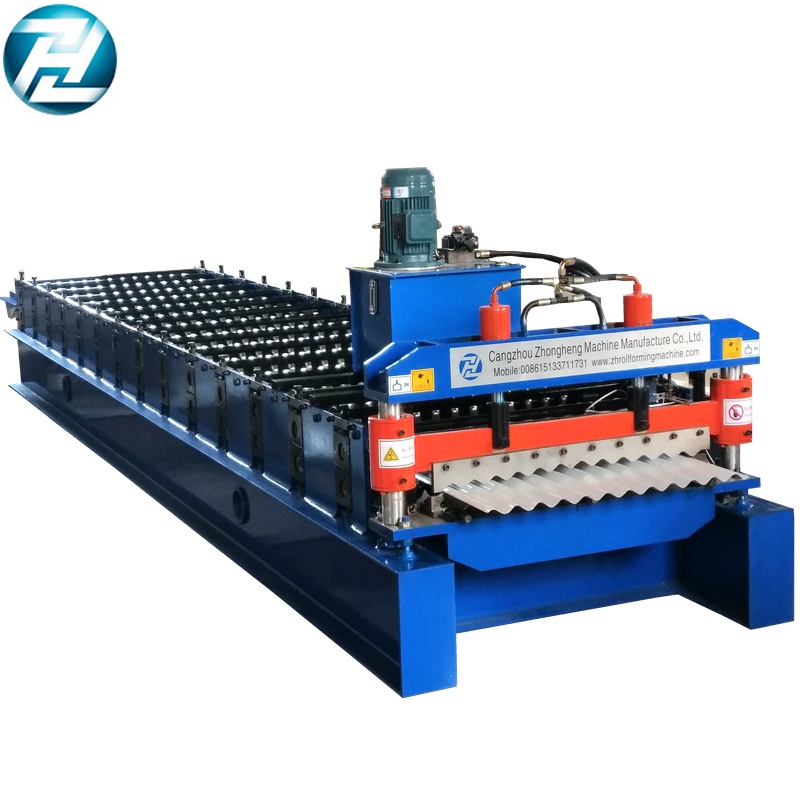

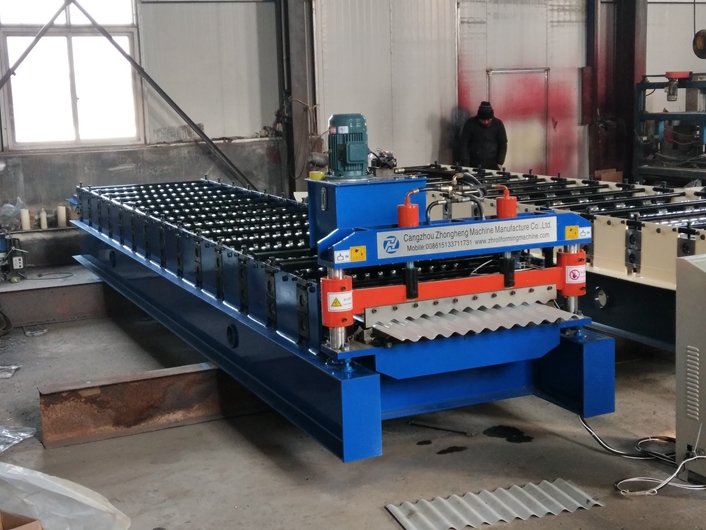

European Style Corrugated Roof Sheet Roll Forming Machine‎

European Style Corrugated Roof Sheet Roll Forming Machine‎

European Style Corrugated Roof Sheet Roll Forming Machine‎

European Style Corrugated Roof Sheet Roll Forming Machine‎

European Style Corrugated Roof Sheet Roll Forming Machine‎

Trade Terms and After sale service

Trade Terms


1.Payment Term:30% paid by T/T as down payment,Balance 70% after inspection before delivery. After finish production, we will inspect the machine and inform the buyer, the buyer come inspect goods, then pay the balance before shipping.

2.Delivery Time:We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.Port of Loading: Tianjin


After sale service


1.Warranty: We provide one year free warranty , and technical support for entire life .

During the warranty, the replaceable parts are free,buyers need to pay for the shipping .We will also provide you instruction manual to show you how to operate the machines.

2.Installation and trainning:We could send technician to your country to install machine if you need. The buyer need to pay extra cost, including:visa, round trip tickets, accommodation, salary of USD 100~120 per day.


ZHONGHENG also have Coil Process Equipments(Slitting Line, Cut To Length Line), C Purlin Roll Forming Machine, Roof Sheet Roll Forming Machine. Wall Cladding Roll Forming Machine, Steel Deck Roll Forming machine, etc for One-Stop service for your steel structure plan.
