Triple-layer-roof-and-wall-sheet-roll-forming-machine-corrugated-and-roof-tile-making-machine

May. 26, 2022

Product Description

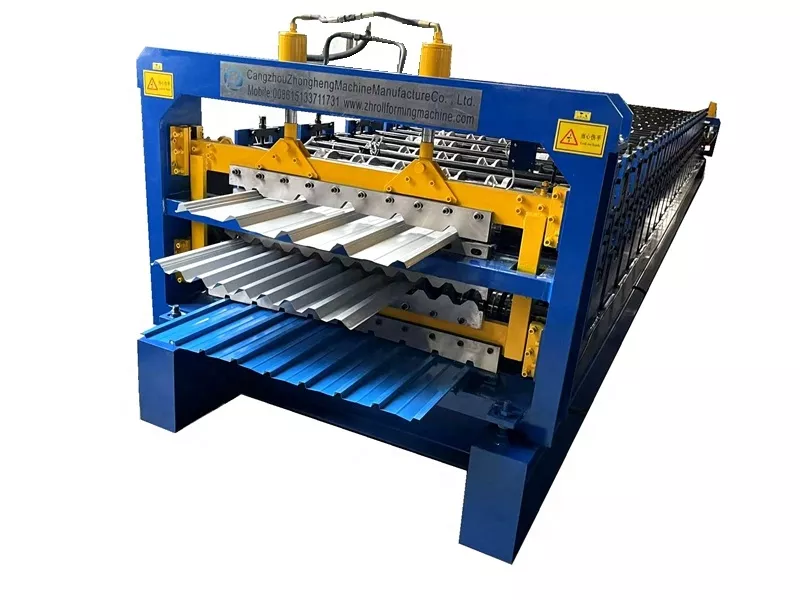

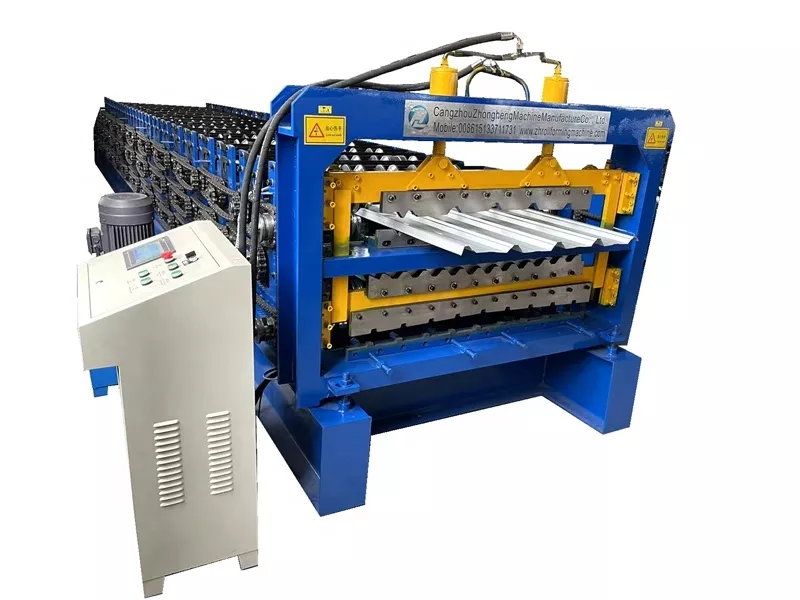

Triple Layer Forming Machine Triple Layer Roll Forming Machine

As a professional manufacturer,we can make Triple layer metal roofing and wall panel roll forming machinery by customer`s demand, with a profile drawing and thickness, we can design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet making machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.

image.png image.png image.png


Product Paramenters
Suitable material
PPGI  GI  AL
Coil Width
1219mm as custom
Thickness
0.3-0.8mm as custom
Power
380V 50Hz 3Phase  as custom
Main motor
5.5KW Siemens
Hydraulic motor
4KW Siemens
Speed
15-30m/min
Forming stations
12-18 rows
Roller material
Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material
45# steel quenched and tempered
Shaft diameter
75mm
Chain
1.2 inch
Screem HMI
Delta , Touch Screen
PLC
Delta , Siemens
Processing precision
Within 1mm
Size
7.6m×1.5m×1.2m
Weight
4.5T
Note: We can design the machine as custom requirement . More information please call Sunny +86 15720370230

Packing&Shipping

1. Triple layer metal roofing and wall panel roll forming machinery need one 20/40 feet container to load .

2.We have professional technicians for loading to make sure machine has no damage.

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

After Sales Service

1.Payment Term: 30% deposit by T/T , balance after machine finish .

2.Delivery Time: within 40 days after receipt of deposit .

3.After sale Service: We could send technician to your country for installation . Cost including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.

4.Warranty: 12 months free



Company Introduction
ZHONGHENG MACHINE have Coil Process Equipments(Slitting Line, Cut To Length Line), glazed tile forming machine,roof forming machine,corrugated sheet forming machine,Wall Cladding Roll Forming Machine,roller shutter door machine,door frame forming machine,floor deck forming machine,C Z purlin forming machine,stud and track forming machine for One-Stop service for your steel structure plan.
