Mini Slitting line

Oct. 29, 2018

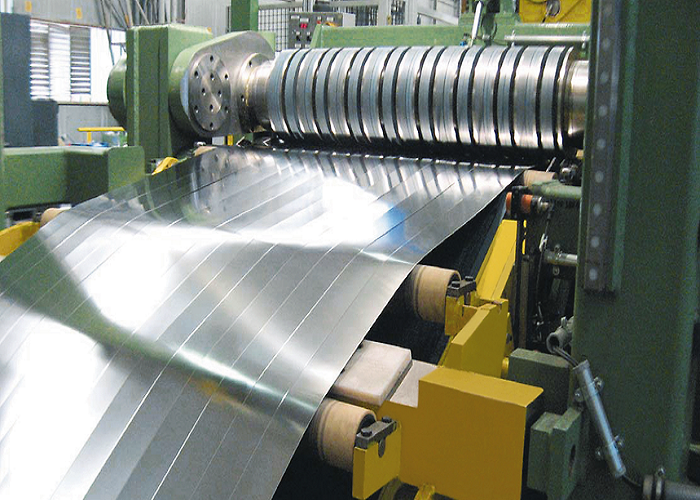

I.Introduction of Stainless steel coil slitting line
         slitting line is named coil slitting with workstations for uncoiling, slitting cut and rolling. It consists of feeding trolley, assisting support, decoiler, pincher, straightener, slitting cutter, edging machine, tensional machine, recoiler machine, and downloading equipment, hydraulic system and so on. The whole line is controlled by PLC with computer display. We mainly apply computer-control system of brands Mitsubishi, Yaskawa, Siemens, Baumueller, Delta, and Schneider. This line can help to improve efficiency, lower cost and ensure quality. ZHONGHENG has won wide market with its high performance and low price. The thickness of material can be from 0.15MM to 4MM, width from 600MM to 1500MM, quantity from 6 to 30 pieces, highest precision ±0.05MM and speed 60M/min. This line is applicable for processing of copper, aluminum, cold-reduced material, hot rolled material, silicon steel, and stainless steel and so on.


We offer customized slitting lines for every kind of metal strip


Zhongheng provides customized slitting line solutions for all dimensions, from hot-rolled strip to thinnest, cold-rolled strip, from aluminum to stainless steel, in strip widths from 650 to 2,100 mm and strip thicknesses from 0.1 to 5 mm. Advanced and pioneering technologies are specially matched to the requirements of our customers.


The high degree of automation in these slitting lines enables economical production, also of smaller lots, to reduce set-up times and to interface with coil packing and logistics.

Strand braking unit

Traversing and tilting braking and transfer stand with integrated strip press and generator-braked, double fleece roll pair and cross-cut shear. With traversing pneumatic strip press or patented strand transfer and pusher device, internally braked segment rolls, and cross-cut shear.

Coil opener and transfer system

For overwinding and underwinding devices to open the coil automatically and transfer the strip head to the pinch roll unit.

4-arm tool change turnstile

Traversing, docked at the slitting shear for automatic tool change.

4-arm coil turnstile

With four snubber devices for fully automatic strapping of the individual, slit coil rings at the circumference.

Characteristic features of slitting lines

Fully automatic strip threading systems

Special braking units for strips with high surface finish

Non-contact braking strips for the aluminum industry

Automatic knife change

Knife arbors with quadruple radial precision bearings

Automatic clamping and unclamping of the cutting tools on the knife arbor

Automatic strip strand transfer systems

Fully automatic strapping on turnstile (SUNDWIG patent)

Underfloor edge scrap baler with automatic feed (SUNDWIG patent)
